Подробная информация о продукции
Место происхождения: Гуандун, Китай
Фирменное наименование: LONGYUAN
Сертификация: FCC CE RoHS ISO9001
Номер модели: LY-8821
Условия оплаты и доставки
Количество мин заказа: 10 частей
Цена: negotiable
Упаковывая детали: Коробка: 100 шт/кор или индивидуальная упаковка в соответствии с требованиями заказчика. Материал уп
Время доставки: дни 5-15work
Условия оплаты: L/C, D/A, D/P, T/T, западное соединение
Поставка способности: 10000pcs/day
Размер тела замка: |
70.6mmx55.6mmx13.4mm |
Вес с крюком: |
166g |
Материал замка: |
SPCC, порошковые металлургии |
Расклассифицированное напряжение тока: |
DC12V |
Настоящий: |
2A |
Максимальная сила: |
24W |
Температура работы: |
-40℃ к +80℃ |
Испытание брызг соли: |
≥48hours |
Интервал светомаскировки: |
>5sec |
Использование: |
Шкаф самообслуживания супермаркета, шкаф пакета, автомат etc |
Размер тела замка: |
70.6mmx55.6mmx13.4mm |
Вес с крюком: |
166g |
Материал замка: |
SPCC, порошковые металлургии |
Расклассифицированное напряжение тока: |
DC12V |
Настоящий: |
2A |
Максимальная сила: |
24W |
Температура работы: |
-40℃ к +80℃ |
Испытание брызг соли: |
≥48hours |
Интервал светомаскировки: |
>5sec |
Использование: |
Шкаф самообслуживания супермаркета, шкаф пакета, автомат etc |

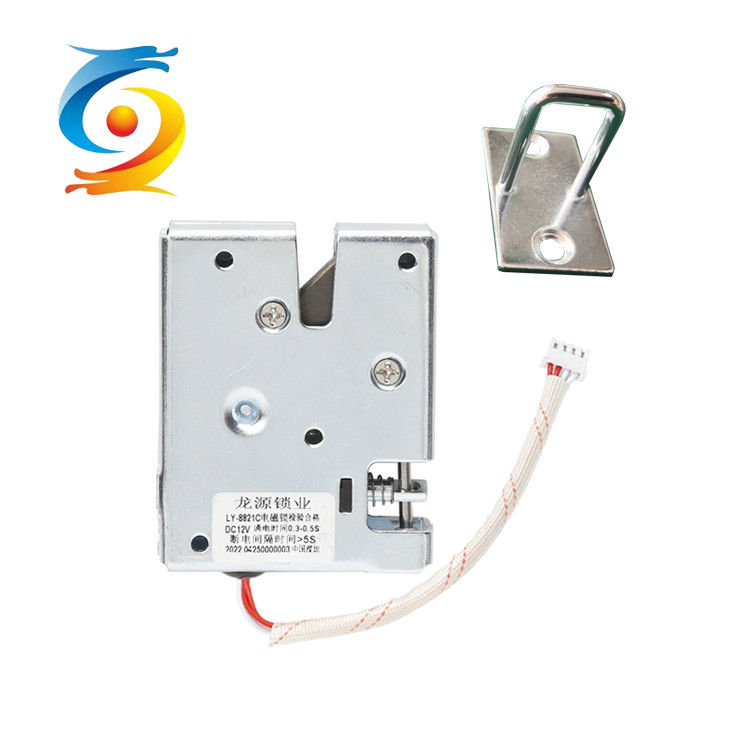

Electrify Silver smart bookcase lock intelligent mini library cabinet electronic lock
Product Features
LY-8821 electromagnetic lock is designed by Shenzhen Longyuan Lock factory with 17+years experience.
LY-8821 electronic magnetic lock has the advantages of high sensitivity, shockproof, pry-proof, and anti-rust capabilities, which fully guarantee the reliability and stability of customers when using it.
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Company Introduction
1. Good lockers equipped good locks, good locks found in Longyuan
2.From design,research,production,we can provide one-stop service,we can customized products upon customer actual demands, OEM and ODM orders are warmly welcome.
3.Different models of products meet different requirements of customers
4.Various product tests are the best guarantee for our company's product quality
Technological Parameter
|
Product name
|
electrify smart bookcase lock
|
|
Place of Origin
|
China
|
|
Brand Name
|
Longyuan lock
|
|
Model Number
|
LY-8821
|
|
Lock Body size
|
70.6mmx55.6mmx13.4mm
|
|
Weight with hook
|
166g
|
|
Lock Body Material
|
SPCC
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(Voltage customized)
|
|
Current
|
2A
|
|
Min Unlock Voltage
|
9.5V
|
|
Max power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Work temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Salt spray testing
|
≥48hours
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing & Delivery
Carton:100PCS/CTN or Customized packaging according to customer requirements.
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.Carton size:350mmx200mmx140mm.
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
